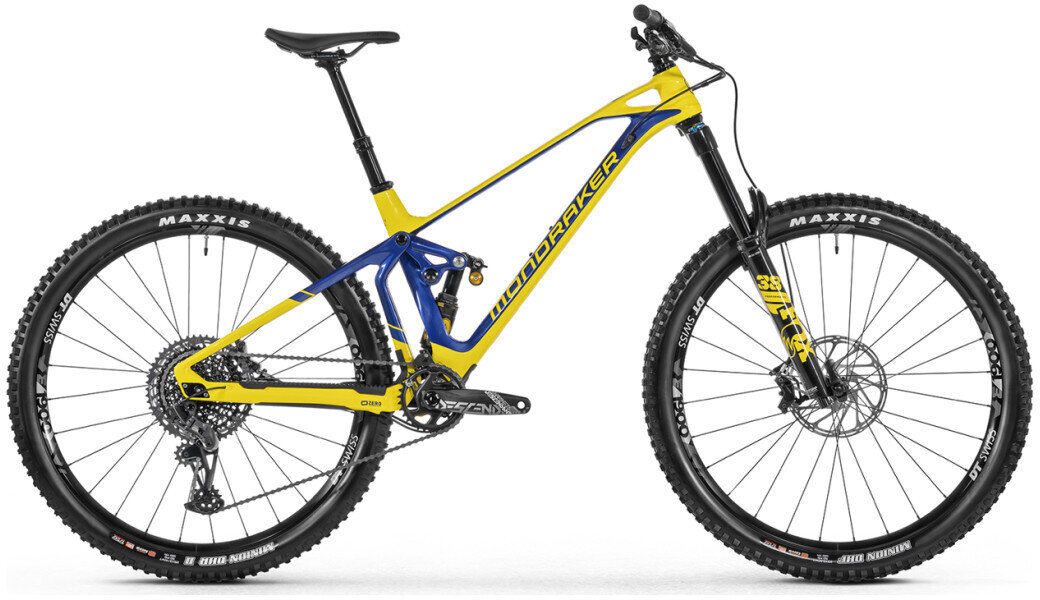

Mondraker Superfoxy Carbon R
Details
Saving weight might not seem the first priority when you’re hitting the biggest lines and roughest backwoods or bike park descents, but at Mondraker we’re proud to always push to think differently.
Our new SuperFoxy Stealth Air Full Carbon frame uses our Downhill World Cup DNA to let you accelerate faster, gap further, hip easier and land smoother without any compromise in strength or control. Low weight obviously means you can reload on gravity gain and max out the grin factor of our signature Forward Geometry handling and Zero Suspension enhanced with Fox 38 29 Float FIT Grip EVOL Performance fork, Öhlins TTX Air 205X62.5mm and a mountain crushing SRAM Code R brake, Eagle gearing, DT Swiss wheel and the premium Maxxis Minion 3C EXO+ tire performance pack.
Specs
| Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included |
|---|---|
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Headset | Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Rear Shock | Öhlins TTX Air 205X62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| Rims/Wheels | DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
| Hubs | DT 370, Boost 15x110mm, IS 6 bolts; DT 370, SuperBoost 12x157mm, 3 Pawl system, IS 6 bolts, XD freehub |
| Tires | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead; Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Crankset | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Chainwheel | 32T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Rear Cogs | Sram XG-1275, 10-52T, 12s |
| Shifters | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Handlebars | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Tape/Grips | Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Brake Levers | Sram Code R, tool-free reach adjust |
| Brakes | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm |
| Color(s) | Yellow/Dark Blue |
| Sizes | Small/Medium |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Yellow/Dark Blue / Medium | 8435392839556 | 010.21102 | 210000007222 |
